| Model | AWSM-500 | AWSM-600 | AWSM-800 |
| Motor Power(kw) | 34kw | 55kw | 75kw |
| Blower powor(kw) | 3kw | 6.5kw | 11kw |
| Voltage（v） | 380v 3ph 50hz | 380v 50hz | 380v 50hz |
| Total Powor(kw) | 41kw | 63kw | 80.5kw |
| Blade Dia(mm) | Φ600mm | Φ600mm | Φ800mm |
| Feeding Dia(mm) | <10mm | <10mm | <10mm |
| Output Size(mesh) | 40-80mesh | 40-80mesh | 40-80mesh |
| Shaker Model | ZDS-800 | ZDS-1000 | ZDS-1200 |
| Capacity(kg/h) | 200-300kg/h | 300-500kg/h | 500-600kg/h |
| L*W*H Dimensions(mm) | 2500*2000*3000 | 3200*2600*3200 | 3500*2400*4000 |
Working principle of plastic grinding machine
Plastic grinding machine mainly crushes plastic materials through the friction and impact force between high-speed blades or grinding discs and materials. The specific process includes:
1. Feeding: Feed the raw materials (plastic blocks or particles) into the feed port of the grinding machine.
2. Crushing and grinding: The plastic is subjected to shear force, impact force and other forces under the action of high-speed rotating blades or grinding discs, so that it is quickly crushed into small particles or fine powder.
3. Screening: Some grinding machines are equipped with screens, and the fineness of the particles can be selected according to the needs. The powder that meets the requirements will be discharged through the screen, and the powder that does not meet the requirements will continue to be ground.
4. Discharging: The finished fine powder is discharged through the discharge port and enters the collection device.
This machine can grind various soft and hard materials into powders of 40-80 mesh at room temperature.It has a wide range of applications, and can grind plastics with different molecular structures such as PVC, PE, modified PP, ABS, PS, PA, PC, and non-plastic materials (such as paper, wood chips, leather, etc.).
Compared with ordinary grinding machines, this machine has a production capacity of two to three times more, and is equipped with a micro-powder dust removal device. It is the most ideal energy-saving and environmentally friendly plastic grinding equipment in China.

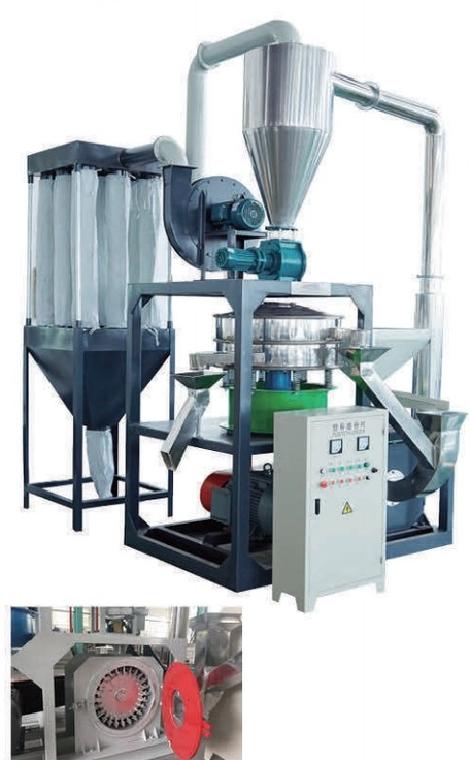

The machine consists of three parts: the main machine, the automatic discharging system, and the automatic powder screening system. It has a high degree of automation and occupies a small area.
The grinding knife is made of high-quality imported steel with good wear resistance and is suitable for continuous operation. The knife is easy to adjust, and the operation and maintenance are simple and easy.
The main shaft bearing adopts the original Japanese NSK brand, and the unique bearing dust prevention device can reliably block any threat of dust to the bearing.
