| Model | Power(kw) | Capacity(kg) | Volume(m²) | Voltage(v) | Rotate Speed(r/min) | Barrel Size(mm) |
| ZHQC-100 | 2.2 | 100 | 0.2 | 380 | 20 | 1500*760*1400 |
| ZHQC-200 | 3 | 200 | 0.3 | 380 | 20 | 2000*750*1450 |
| ZHQC-300 | 4 | 300 | 0.6 | 380 | 20 | 2000*1100*1600 |
| ZHQC-500 | 5.5 | 500 | 1 | 380 | 20 | 2500*900*1700 |
| ZHQC-1000 | 11 | 1000 | 2 | 380 | 18 | 3000*1300*2100 |
| ZHQC-1500 | 15 | 1500 | 3 | 380 | 18 | 3020*1400*2200 |
| ZHQC-2000 | 20 | 2000 | 4 | 380 | 15 | 3450*1500*2400 |
| ZHQC-3000 | 30 | 3000 | 6 | 380 | 15 | 3780*1910*2700 |

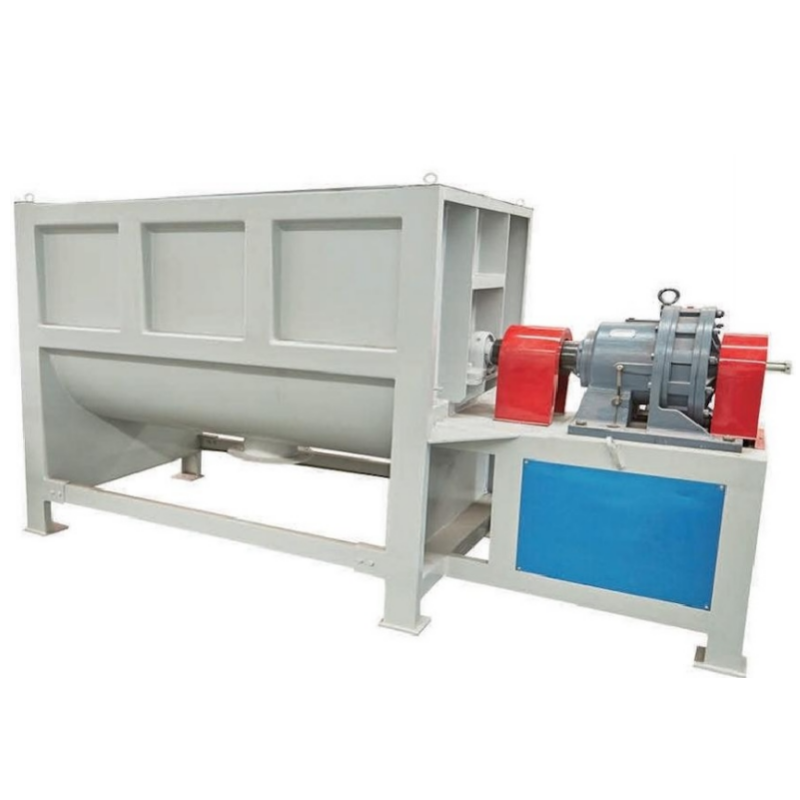

Working PrincipleThe working principle of the low-speed mixer mainly includes the following steps:
- Raw material delivery: Put the raw materials to be mixed (such as plastic granules, additives, masterbatch, etc.) into the mixing tank of the mixer. The design of the mixing tank is usually closed to avoid interference from the external environment to the mixing process.
- Low-speed rotation: The agitator (usually paddle, blade or spiral) inside the mixer rotates at a low speed. Low-speed stirring ensures that the raw materials will not be over-sheared or heated during the mixing process.
- Uniform mixing: Under the action of the agitator, the raw materials gradually tumble and alternate in the mixing tank to achieve uniform mixing. Due to the low stirring speed, the mixing process is relatively gentle, avoiding physical damage to the raw materials.
- Mixing state monitoring: Many low-speed mixers are equipped with detection systems that can monitor the mixing state in real time to ensure that the predetermined mixing uniformity is achieved.
- Discharge: After mixing, the mixer discharges the evenly mixed raw materials through an opening or a discharge valve for subsequent processing.
Main featuresEven mixing: Low-speed mixers can effectively achieve even mixing of different materials to ensure the consistency of the final product.Temperature control: Due to low-speed stirring, it can effectively prevent overheating of materials and is suitable for temperature-sensitive raw materials.Simple operation: The equipment has a simple structure, is easy to operate and maintain, and is suitable for a variety of production environments.Wide range of applications: It is suitable for mixing raw materials in a variety of plastics and other industries, such as chemicals, food, medicine, etc.The application of low-speed mixers in plastic processing helps to improve production efficiency and product quality, and is widely used in plastic injection molding, extrusion and blow molding processes.
